QD2300

The QuickScan reader series is Datalogic ADC’s value line of general purpose handheld data collection products. As an entry level scanner, the QuickScan L scanner provides a simple solution for those who prefer laser scanning technology and need to read bar codes at nominal distances. A wider than usual scan angle provides the ability to read a longer bar code from a shorter distance.

Perfect for use in retail and office environments, its small, lightweight and ergonomic design is comfortable to use during daily operations. The QuickScan L reader has snappy reading performance and is capable of reading a wide range of symbologies including the majority of 1D codes plus GS1 DataBar™ linear codes.

The QuickScan L reader has been designed with durability in mind. One of the most vulnerable features of any scanner is damage to the scan window. When such incidents happen, the scanner may have to be replaced. The QuickScan L reader was specifically designed so that a replacement window pack can be ordered to replace damaged or scratched windows without having to send the scanner away for repairs. This helps to reduce the total cost of ownership during the life of the scanner and helps to ensure that it is always available for use.

Each QuickScan L reader comes with multiple interfaces which cover the most popular interfaces and includes various packaging options so that it can be ordered as the scanner only or as a kit equipped with a scanner, cable and stand to facilitate hand-free reading options.

Features

• Wider scan angle for longer code reading
• User replaceable scan window
• Multi-interface solution for the most popular interfaces
• Supports GS1 DataBar™ linear codes
• Water and Particulate Sealing Rating: IP42
• Drop resistance to 1.5 m / 4.9 ft
• 20 kV Electrostatic protection (air discharge)

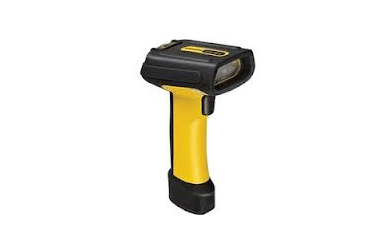

PD 7100

The PowerScan 7100/7000 product series are Datalogic ADC’s value line of rugged industrial handheld data collection products. The PowerScan D7100 linear imaging corded reader combines rugged durability and extremely snappy reading performance all at an affordable price.

Datalogic ADC’s innovative and unique optical design of the PowerScan 7100 series of readers combines scanner features that are normally available on different scanner models into a single device: up to 3 mils maximum code resolution; contact to about 3.0 m / 9.8 ft reading distance; and wide angle code reading. The result is a versatile, easy to use and intuitive scanner that simplifies any code reading activity.

Together high-speed digital hardware and Datalogic ADC’s advanced decoding algorithms produce read rates up to 390 scans per second, making the PowerScan 7100 readers the fastest industrial scanners available. This is why the 7100’s are especially suitable for “high-speed” applications where thousands of codes have to be read in a very short period of time

As with all PowerScan products, the 7100 readers’ mechanics have been developed and tested to withstand extreme environmental conditions while maintaining consistent reading performance. A loud beeper and Datalogic’s exclusive patented ‘Green Spot’ directly on the code, provide intuitive good read feedback in noisy environments.

The PowerScan 7100 readers are offered with two different multi-interface combinations; the Standard multi-interface includes RS-232, Keyboard Wedge and USB; the second multi-interface set includes RS-232, IBM46xx and USB.

Light weight and instinctive usage combined with outstanding speed-to-read makes the 7100 product series the ideal solution for intensive code reading applications.

Features

• Fastest speed-to-read - 390 scans/second
• Datalogic ‘Green Spot’ and loud beeper for good read feedback
• Water and particulate sealing rating: IP65
• Drop resistance to 2.0 m / 6.5 ft
• 25 kV Electrostatic protection (air discharge)
• Model option with aimer for optimal code pointing
• Two different multi-interface options

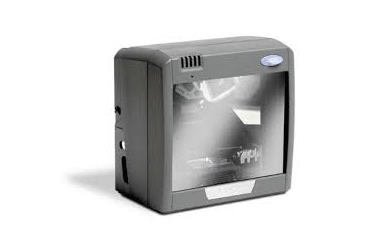

Magellan 2200VS

The Magellan 2200VS scanner is specifically designed for retailers that require high performance in a compact, vertical form factor. Tailored for very small counter retail checkout environments with medium to high volume point-of-sale (POS) transactions, the Magellan 2200VS scanner is particularly effective in drug stores, convenience stores, smaller to medium sized grocery stores, DIY stores, and specialty stores. With category leading scanning performance for superior ergonomics and throughput, the 2200VS demonstrates the Magellan brand renowned quality and reliability.

Advanced software decoding algorithms provide the industry’s best scanning speed and simultaneously improve first pass read rates of damaged, wrinkled, or poorly printed bar codes delivering improved operational efficiencies at the retail checkout.

Flash memory allows for easy software upgrades that help extend the life of the retailer’s investment. In addition, an auxiliary RS-232 port can be utilized in a variety of ways, including adding a handheld scanner, programming and configuring the scanner, or accessing the scanners label data output. For applications requiring electronic article surveillance (EAS), the 2200VS can be equipped with Checkpoint EAS and can support Sensormatic EAS systems with good read acknowledgement via the auxiliary RS-232 port. Optional Value Added Features provide optional information tools that help decrease front-end costs by managing information on scanner software and diagnostics.

Features

• World’s leading vertical on-counter single plane presentation bar code scanner
• Renowned Magellan brand quality and reliability
• Best in class scanning performance for both sweep and presentation scanning styles
• FirstStrike advanced decoding software delivers the best performance in reading poor quality labels
• Supports GS1 DataBar™ codes



• Flash memory for easy software upgrades in the field
• Multiple interface solution supports all popular host interfaces in every unit
• Powered auxiliary RS-232 port for easy integration of a handheld scanner
• Checkpoint Systems and Sensormatic EAS compatible (Optional)

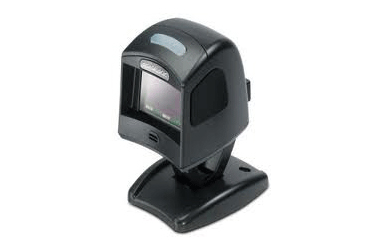

Magellan 1100i

The Magellan™ 1100i Omni directional presentation scanner is a high performing and versatile data collection tool for a variety of applications. It uses Datalogic ADC’s latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D bar codes as well as supporting advanced features like image capture and EAS tag deactivation. A revolutionary External Read Indicator (ERI) allows the Magellan 1100i reader to integrate with other third party RFID or EAS systems for a truly “future-proof” solution.

Datalogic’s Illumix™ intelligent illumination technology in the Magellan 1100i reader optimizes light levels to automatically capture images and read codes from mobile phones, PDAs, or computer display screens. Illumix technology also provides incredible motion tolerance, far beyond most other 2D scanning solutions, enabling both sweep and presentation scanning techniques.

The Magellan 1100i reader’s compact size makes it the ideal solution for space-constrained environments. With a precise reading area it is perfect for hands-free or handheld scanning and helps reduce accidental misreads of items caused by stray laser scan lines - improving productivity and customer satisfaction.

Datalogic ADC’s patented Green Spot good-read indicator improves user feedback by projecting a visual green spot onto bar codes just read. The additional visual feedback makes it easy to use in noisy retail applications and in healthcare or library applications that benefit from silent reading. The Green Spot can also be used to target a single code from a group of codes or to position a single code inside the reading area.

A comprehensive multi-interface set and a powerful label-editing feature allows easy integration into existing or new host systems. Magellan Value Added Features such as Diagnostics Reporting, Host Download, plus optional Productivity Index Reporting™ allow management to use data from the scanner to improve throughput and manage maintenance. In addition, each scanner supports Remote Management Systems to streamline operations and ongoing support across an enterprise.

Features

• Aggressive performance on 1D and optional 2D codes increases productivity
• Digital imaging technology eliminates moving parts for improved reliability
• Illumix™ intelligent illumination technology auto-detects bar codes from mobile phones, laptops or PDAs
• Compact, ergonomic design is ideal for hands-free or handheld operation
• Green Spot good-read indicator provides additional user feedback on button equipped models



• Precise imaging scan volume eliminates misreads caused by stray laser scan lines
• Button model for image capture or targeting applications like Price Look Up (PLU) lists
• Checkpoint Systems EAS and Interlock compatible
• WMI Compliant; Integrates with IBM Director through Remote Management Agent (RMA)
