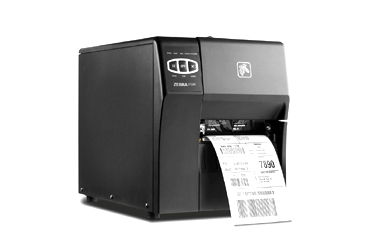

Printer Specifications

• Resolution: 203 dpi (8 dots/mm)
• 300 dpi (12 dots/mm)
• Memory: 128MB Flash, 128MB RAM
• Print width: 4.09"/104 mm
• Print length: 203 dpi: 157"/3,988 mm and 300dpi: 73"/1854 mm (optional)
• Print speed: 203 dpi:
• 6" (152 mm)/sec
• 300 dpi:
• 6" (152 mm)/sec
• Media sensors: Reflective, Transmissive

More Standard Features

• Element Energy Equalizer™ (E3®) for superior print quality
• USB 2.0 and RS-232 serial ports
• Dual media sensors - transmissive and reflective sensing technology, selectable through software or front panel
• Media supply hanger designed for 1" (25mm) through 3" (76mm) core diameters
• Side loading metal print mechanism with head open lock
• Link-OS™ capable

Media Characteristics

• Maximum label and liner width: 4.50"/114 mm
• Minimum label and liner width: 0.75" (19.4 mm)
• Maximum non-continuous label length: 39"/991 mm
• Maximum Media Roll Size:
• 8.0" (203 mm) O.D. on a 3" (76 mm) I.D. core
• 6.0" (152 mm) O.D. on a 1" (25 mm) I.D. core
• Media thickness: 0.003"/0.076 mm to 0.010"/0.25 mm
• Media types: continuous, die-cut, notch, black mark

Ribbon Characteristics

• Outside diameter: 300m = 2.7"/68.6 mm
• Standard length: 984'/300 m
• Ribbon width: 1.57"/40 mm to 4.33"/110 mm
• Ribbon setup: Ribbon wound ink-side out
• ID Core: 1.0" (25.4 mm)

Standard Features

• Thermal transfer and direct thermal operating modes (can only use one mode at a time)
• Die-cast aluminum base, frame, and printhead mechanism
• Metal media cover with large clear window

Printer Specifications

• Resolution: 203 dpi (8 dots/mm)
• 300 dpi (12 dots/mm)
• 600 dpi (23.5 dots/mm)

Ribbon Characteristics

• Outside diameter: 3.2" (81.3 mm)
• Standard length: 1476' (450 m) or 984' (300 m)
• Ratio: 3:1 media roll to ribbon ratio
• Ribbon width: 2" (51 mm) to 4.33" (110 mm)
• Ribbon: setup Ribbon wound ink-side out or ribbon wound ink-side in (configurable one or the other, but not both)
• ID Core: 1.0" (25.4 mm)

More Standard Features

• 16 MB DRAM, 8MB Flash
• 203dpi (8 dots/mm) printhead
• RS-232C Serial Interface
• High Speed, IEEE 1284, Bi-Directional Parallel Interface
• USB 2.0
• Transmissive and reflective media sensors
• Multi-lingual backlit 240x128 pixel graphic display
• Color-coded operator cues
• RFID Ready
• 7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)
• 32-bit processor
• Auto-calibration
• Auto detectable (90V - 265V) power supply
• Element Energy Equalizer™ (E3®) (for print head energy control)
• Real Time Clock
• Unicode™ - Compliant
• Quick change printhead and platen
• Charcoal gray form design (for improved smudge resistance)
• ZPL® or ZPLII® (Zebra Programming Language®)

Memory

• 16 MB DRAM
• 8 MB Flash
• 64 MB Factory-Installed On-Board Optional Flash (optional)
• Print width: 4.09" (104 mm)
• Print length
• Length with 203 dpi: 157" (3,988 mm)
• Length with 300 dpi: 73" (1,854mm)
• Length with 600 dpi: 39" (991mm)
• Print speed: 203 dpi
• 10" (254 mm)/sec
• 300 dpi
• 8" (203 mm)/sec
• 600dpi
• 4" (102 mm)/sec
• Media sensors: Reflective, Transmissive

Media Characteristics

• Maximum label and liner width
• 4.5" (114 mm) - tear & cutter
• 4.25" (108mm) - peel & rewind
• Minimum label and liner width: 1.0" (25.4mm)
• Maximum label and liner length: 39" (991mm)
• Maximum roll diameter: 8" (203 mm)
• Core diameter: 3" (76 mm)
• Media thickness: 0.0023" (.058 mm) to 0.010" (0.25 mm)
• Media types: black mark, continuous, die-cut, fanfold, notched, perforated, tag stock
