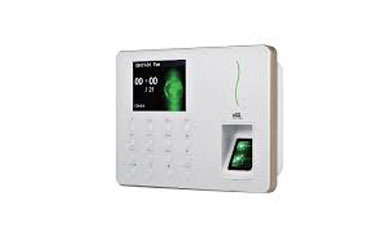

WL20

Features
  • Wi-Fi, USB client & host
  • Stable operation under strong light source
  • Infrared auto-turning on function to save power
  • Quick recognition of dry, wet and rough fingers
  • Build-in SSR Excel software, Shift and Report management

Specification
  • Fingerprint Capacity 1000 / 1500 (without SSR)
  • Finger Algorithm Finger VX10.0
  • Record Capacity 50,000
  • Display 2.8-inch TFT Screen
  • Communication Wi-Fi , USB-Host, USB-Client
  • Standard Functions SSR, DST, Scheduled-bell,
        Self-Service Query, Automatic Status Switch,
        T9 Input 9 digit user ID



  • Power Supply DC 5V 0.8A
  • Operating Temperature 0°C to 45°C
  • Operating Humidity 20%-80%
  • Dimension 65 x 133 x 21 mm
Product Enquiry

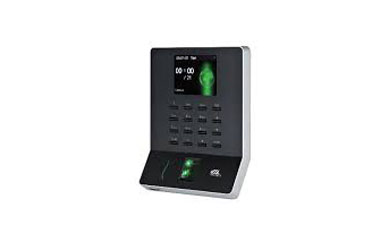

WL 30

Specification
  • Fingerprint Capacity : 1000 / 1500 (without SSR)
  • Finger Algorithm : Finger VX10.0
  • Record Capacity : 50,000
  • Display : 2.8-inch TFT Screen
  • Communication : Wi-Fi , USB-Host, USB-Client
  • Identification speed : <=0.5 sec
  • Dimension : 65 x 133 x 21 mm



Product Enquiry
