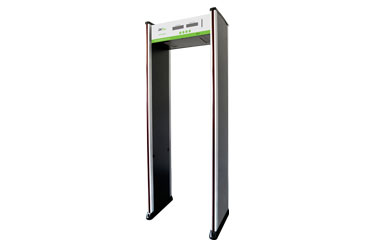

D 1065S
Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
Features
- Sensitivity adjustable: Each zone has 100 sensitivity level
- Sound & LED alarm: Both Side LED indicator ,easily show where the metal is.
- Automatically count passengers and alarm times
- Alarm strength indicator on control panel
- Password protection, only the authorized person can operate.
- Easy assembly: designed with only 2 pieces cables and 8 screws,
simply-to-follow instruction. - Using high density fireproof material
- Program Self-diagnostic when power on, no need initial or periodic calibration
- Modularization design, easy for maintenance and replacement.
Specification
- Power Supply: AC85 V-264 V
- Working temperature: -20℃--+50℃
- Working Frequency: 4KHZ—8KHZ
- Standard External size:
2200mm(H) X 800mm(W) X 580mm(D) - Standard Internal size:
2010mm(H) X 700mm(W) X 500mm(D) - Package size for door panels: 2260*650*260mm *1ctn
- Package size for control unit: 780*390*250 mm*1ctn
- Gross weight: 70KG
- Eighteen mutual over-lapping detecting zones,
Simultaneous alarm from multi- zones; - Small LCD screen, English operating software,
easy to operate. - Sensitivity adjustable: Each zone has 256 sensitivity
level

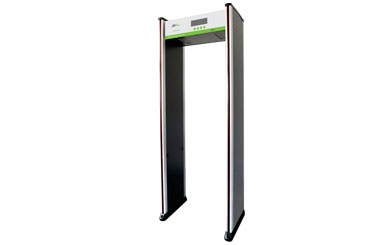

D 2180S
Eighteen mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
Features
- Small LCD screen, English operating software, easy to operate.
- Sensitivity adjustable: Each zone has 256 sensitivity level
- Sound & LED alarm: Both Side LED indicator, easily show where the metal is.
- Automatically count passengers and alarm times
- Alarm strength indicator on control panel
- Password protection, only the authorized person can operate.
- Easy assembly: designed with only 2 pieces cables and 8 screws,
simply-to-follow instruction.
- Harmless to human body: is harmless with heart pacemaker, pregnant women,
magnetic floppy, recording tapes, etc. - Using high density fireproof material
- Program Self-diagnostic when power on,no need initial or periodic calibration
- Modularization design,easy for maintenance and replacement.
- 4-8 hours backup battery (Option)
Specification
- Power Supply: AC85 V-264 V
- Working temperature : -20℃--+50℃
- Working Frequency: 4KHZ—8KHZ
- Standard External size: 2200mm(H)X800mm(W)X580mm(D)
- Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)
- Package size for door panels: 2260*650*260mm *1ctn
- Package size for control unit: 780*390*250 mm*1ctn
- Gross weight: 70KG

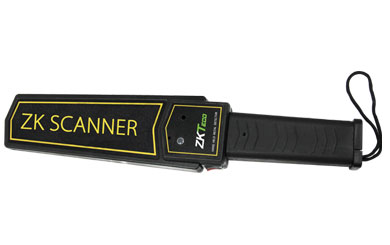

D 100S
Features
- Security detecting: Prevent taking contraband, such as: knife, gun and so on.
- Factory: Prevent the loss of valued objects.
- Education area: Prevent taking cheat-tool, such as: telephone,
electronic dictionary, and so on - Portable metal detector, convenient to take.
- It can be recharged. It needs 4-6 hours for charging. (standard 9V battery,
the charger and rechargeable battery are ordered additional)
- The alarm terms is sound and light alarm simultaneously, or vibration and
light alarm simultaneously. You can choose the operate terms optionally. - When the low sensitivity on-off is pressed, the metal detector will only alarm
when it finds big metal object - Li battery, USB charge cable (for option)
- Battery saving function: Automatically power OFF after one minute if no use.
(for option)
Specification
- Dimension: 410(L) X 85(W) X 45(H) mm
- Power voltage: standard 9V battery
- Operating voltage: 7V-9V
- Operating Current: <50mA
- Alarm terms: sound (vibration) and light alarm simultaneously
- Waterproof: IP31
- Alarm Sound: ≥75dB(A)
- Operation Frequency: y40KHz
