Flap Barriers are well adopted in entrances and exits of buildings or construction sites, to help tracking staffs and visitors. Only authorized users are able to access to specific areas through the flap barriers. Lights on the barriers are to indicate status of the flap barriers. Steady green lights indicate locked barriers. Blinking green lights indicate accessible barriers.

ZKTeco’s assembled access control system significantly reduces costs for business partners. RFID, fingerprint verification, face recognition, and vein verification technologies are available for options of flexible access control system.

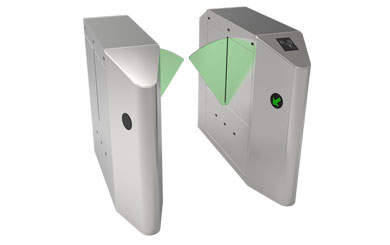

FB1000 Series

Available Models
  • FB1000: Single Lane Flap Barrier
  • FB1011: Single Lane Flap Barrier with RFID Access Control System
  • FB1022: Single Lane Flap Barrier with Fingerprint and RFID Access Control System
  • FB1200: Double Wing Flap Barrier for Additional Lane
  • FB1211: Double Wing Flap Barrier for Additional Lane with RFID Access Control System
  • FB1222: Double Wing Flap Barrier for Additional Lane with Fingerprint and RFID Access Control System
  • FB1000 is a single-lane flap barrier consisting of a master-device and a slave-device to form an entrance.
  • FB1200 is a double-wing flap barrier to be equipped with FB1000 to form multi-entrances.
Specification
  • Passage Width: 600mm
  • Capacity: 25-30/minute
  • Flap opening/closing time: 1S
  • Overall Width: 1200mm
  • Barrier Height: 785mm
  • Power Supply: AC110-220V,50Hz/60Hz
  • Operating Power Consumption: 80W
  • Stationary Power Consumption: 30W
  • Temperature: -28 to 60 °C



  • Net Weight: 143Kg(FB1000) 86Kg(FB1200)
  • Gross Weight: 212Kg(FB1000), 121Kg(FB1200)
  • Two way traffic: Yes
  • Automatic operation: Yes
  • Advanced sensor system: Yes
  • Audible alarm: Yes
  • LED lighting: Yes
  • Traffic indicator lights: Yes
  • Fail-safe: Yes
Product Enquiry

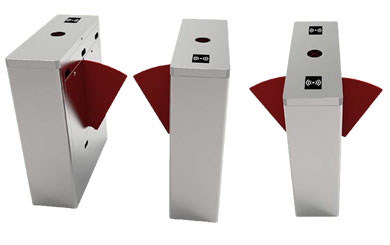

FBL 1000 Series

Features
  • FBL1000 : Single Lane Swing Barrier Turnstile
  • FBL1011 : Single Lane Swing Barrier Turnstile (w/ controller and RFID reader)
  • FBL1022 : Single Lane Swing Barrier Turnstile (w/ controller and fingerprint & RFID reader)
  • FBL1200 : Flap Barrier Turnstile for additional Lane
  • FBL1211 : Flap Barrier Turnstile for additional Lane (w/ controller and RFID reader)
  • FBL1222 : Flap Barrier Turnstile for additional Lane (w/ controller and fingerprint & RFID reader)
Specification : FBL1000/FBL1200
  • Power requirements : AC 100 ~ 120V/200 ~ 240V, 50/60Hz
  • Working temperature: -28℃~60℃
  • Working humidity: 5%~80%
  • Working environment: Indoor/outdoor (if sheltered)
  • Speed of throughput: RFID Maximum 42/ minute
  • Fingerprint: Maximum 35/ minute
  • Face: Maximum 11/ minute
  • Lane width(mm): 600
  • Footprint(mm*mm): 1200*870/840*870
  • Dimensions(mm): L=870,W=300,H=1000/L=870,W=300,H=1000
  • Dimension with packing(mm): L=1000,W=840,H=1090/L=1000,W=430,H=1110



  • Net weight(kg): 97/58
  • Weight with packing(kg): 153/81
  • LED indicator : Y
  • Cabinet material: SUS304 Stainless Steel
  • Lid material: SUS304 Stainless Steel
  • Barrier material: Acrylicl
  • Barrier movement: Retracting
  • Emergency mode: Y
  • Security leve : Medium
