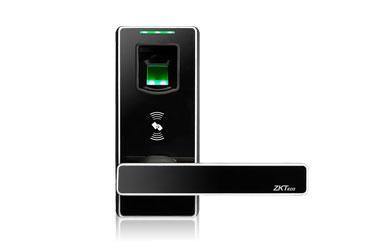

ML10-ID
ML10-ID is integrated with fingerprint recognition and RFID card technology. It is DIY design, which can replace knob lock easily and quickly. You can even do it by yourself.
Specification
- Three independent unlock method: Fingerprint, ID-Tag,
mechanical key - User capacity: 180
- Fingerprint capacity: 90
- Card capacity: 90
- Rugged, sleek and compact design
- With the new generation fingerprint recognition
algorithm - American standard single latch for easy replacement
and installation - Independent clutch motor design under patent
protection - Idle handle design to prevent from forcible entry
- Registration data are stored even if there is power loss
- Handle, latch and strike is reversible design for all door
open direction - Capacitive sensing technology - Touch to open
- Emergency key override (concealed)
- LED indicator and inbuilt buzzer
- External terminals to draw back-up power from a
9V battery - Low battery warning
- Normal Open mode
- Easy to program and easy to use
- Easy to install–no wiring required
- 3 user groups - Admin, Normal User and
Temporary User - Back set is 60 mm or 70mm (adjustable)
- Material: Zinc Alloy
- Power Supply:4×AA Alkaline Battery
- Door Thickness
30-38 mm (optional)
39-46 mm (standard)
47-54 mm (standard)
55-60 mm (optional)
- Dimensions
Front - 69(W)×155(L)×35(D) mm
Back - 69(W)×155(L)×25(D) mm

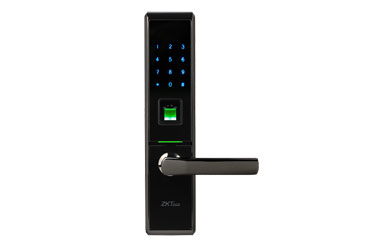

TL-100
TL100 is an anti-theft fingerprint lock with touch keypad, which use robust and safe anti-theft mortise with one latch and two deadbolt, so that you can lock the deadbolt from both inside and outside for more security. It provides various access for your convenience - fingerprint/password/card/mechanical key. Meanwhile, TL100 has voice guide function that lets you know the operation status and how to operate each step for easier and more convenient use.
Specification
- New generation fingerprint recognition algorithm
- Robust and safe anti-theft mortise design
- Wide touch pad screen with tempered glass material
- Voice guide for easier and more convenient use
- With random password for more security
- Illuminated keypad for easy and quick operation
after dark - Various access for your convenience -
fingerprint/password/card/key - Idle handle design to prevent from forcible entry
- Reversible design to fit for all door open direction
- Smart alarm for low battery & illegal operation
- Support passage mode - Normal open
- User data synchronization
- External terminals to draw back-up
power from a 9V battery
- Turn handle upward to lock deadbolt
- Remote open door is optional
- Material:Zinc Alloy
- Fingerprint Capacity:100
- Password Capacity:2
- Card Capacity:100
- Communication:U-Disk
- Options:Remote Control
- Power Supply:8 x AA Alkaline Battery
- Backup Unlocking Way:Mechanical Key & 9V Battery
- Door Thickness: 65-75 mm (standard) 75-90 mm (optional)
