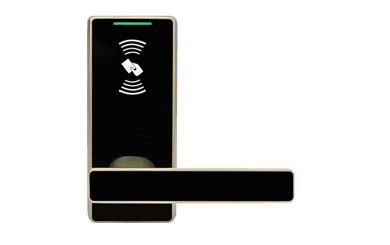

ML10R

ML10R is a smart lock with advanced RFID technology. It is designed for DIY, which enables you to replace a knob lock with it by yourself easily and quickly.

Specification
  • Advanced 13.56mhz Mifare card technology
  • Rugged, sleek and compact design
  • American standard single latch for easy replacement
        and installation
  • Independent clutch motor design under
        patent protection
  • Idle handle design to prevent forcible entry
  • Registration data are stored even if there is power loss
  • Handle, latch and strike are reversible for all door
        opening directions
  • Emergency key override (concealed)
  • LED indicator and inbuilt buzzer
  • External terminals to draw back-up power from a
        9V battery
  • Low battery warning
  • Normal Open mode



  • Easy to program and easy to use
  • Easy to install - no wiring is required
  • 3 user groups- Admin, Normal User and
        Temporary User
  • Backset is 60 mm or 70mm (adjustable)
  • Material:Rugged Zinc Alloy Admin-10 Admin-10
        Normal User-60 Temporary User-20
  • Power Supply:4 x AA Alkaline Battery
  • Backup Unlocking Way: Mechanical Key & 9V Battery
  • Door Thickness 30-38 mm (optional)
        39-46 mm (standard) 47-54 mm (standard)
        55-60 mm (optional)
  • Dimensions
        Front - 69(W)×155(L)×35(D) mm
        Back - 69(W)×155(L)×25(D) mm
Product Enquiry

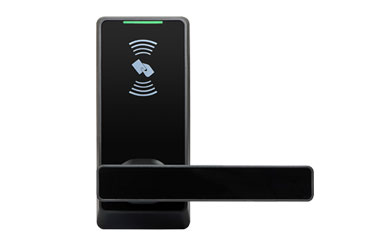

PL10-R

PL10R is a smart lock with advanced RFID technology. It is designed for DIY, which enables you to replace a knob lock with it by yourself easily and quickly.

Specification
  • Advanced 13.56mhz Mifare card technology
  • Rugged, sleek and compact design
  • American standard single latch for easy
        replacement and installation
  • Independent clutch motor design under
        patent protection
  • Idle handle design to prevent forcible entry
  • Registration data are stored even if there is
        power loss
  • Handle, latch and strike are reversible for all
        door opening directions
  • Emergency key override (concealed)
  • LED indicator and inbuilt buzzer
  • External terminals to draw back-up power
        from a 9V battery
  • Low battery warning
  • Normal Open mode



  • Easy to program and easy to use
  • Easy to install - no wiring is required
  • 3 user groups- Admin, Normal User
        and Temporary User
  • Backset is 60 mm or 70mm (adjustable)
  • Material:Rugged ABS
  • User Capacity: Admin-10 Normal User-60
        Temporary User-20
  • Power Supply: 4 x AA Alkaline Battery
  • Backup Unlocking Way :Mechanical Key
        & 9V Battery
  • Door Thickness : 30-38 mm (optional)
        39-46 mm (standard) 47-54 mm (standard)
        55-60 mm (optional)
  • Dimensions
        Front - 69(W)×155(L)×35(D) mm
        Back - 69(W)×155(L)×25(D) mm
