ML10DB

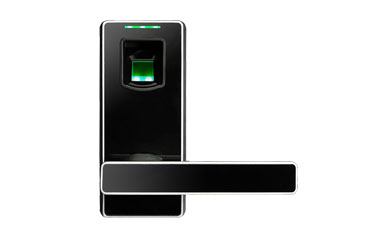

PL10DB series is a smart lock with embedded fingerprint recognition technology. It’s support blue-tooth connection, unlock door and manage users by mobile phone.
Specification
- Support blue-tooth connection, unlock door
and manage users by ZKBioBT App - With the new generation fingerprint
recognition algorithm - Rugged, sleek and compact design
- Independent clutch motor design under patent protection
- Idle handle design to prevent from forcible entry
- Registration data are stored even if there is power loss
- Handle, latch and strike is reversible design for all door
open direction - Capacitive sensing technology - Touch to open
- Emergency key override (concealed)
- LED indicator and inbuilt buzzer
- External terminals to draw back-up power from a
9V battery - Low battery warning
- Normal Open mode
- Easy to program and easy to use
- Easy to install - no wiring required
- 3 user groups - Admin, Normal User and
Temporary User - Material: Rugged ABS
- German standard mortise with one latch and one
deadbolt - turn handle upward to lock the deadbolt for
more security - PL10DB - User Capacity:
Admin - 10
Normal User - 60
Temporary User - 20 - Back set 60mm or 70mm (adjustable) -PL10B
- Power Supply 4 x AA Alkaline Battery
- Battery Life Over 6000 times (approx1 year)
- Backup Unlocking Way Mechanical Key & 9V Battery
- Door Thickness
30-38 mm(optional)
39-46 mm(standard) 47-54 mm(standard)
55-60 mm(optional) - Dimensions
Front - 69(W) × 155(L) × 35(D)mm
Back - 69(W) × 155(L) × 25(D)mm
